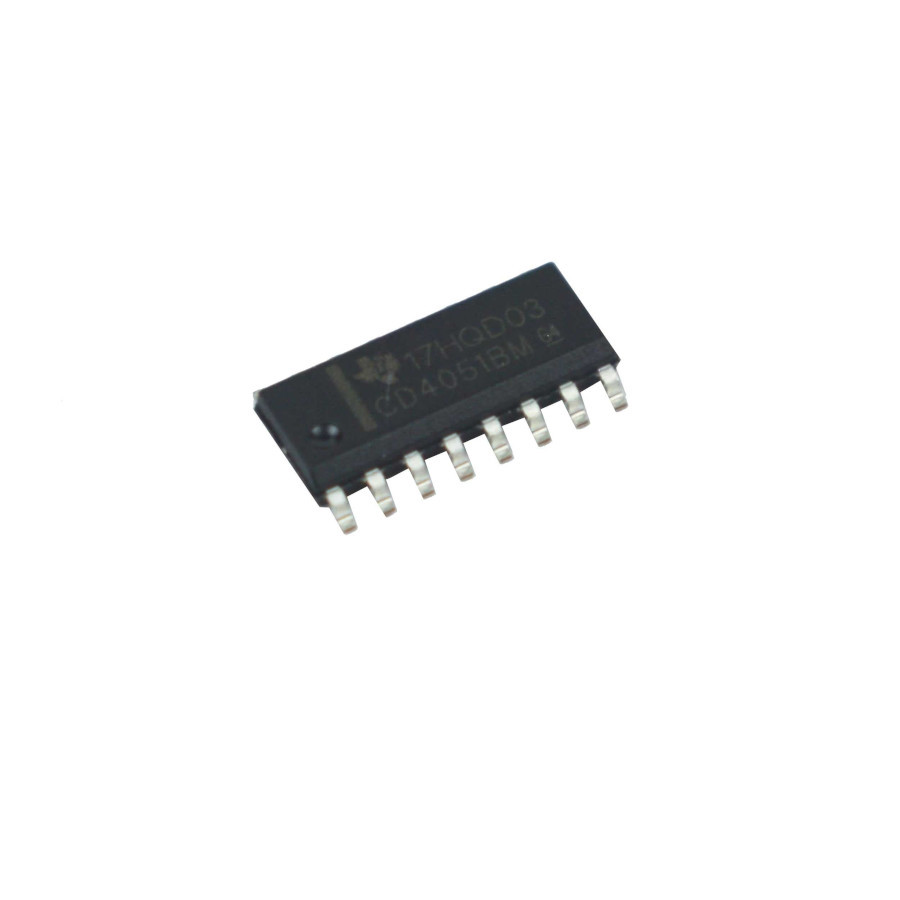

CD4051BM 8-channel CMOS Analog Multiplexers And Demultiplexers.

The CD4051BE is analog multiplexers and demultiplexers are digitally-controlled analog switches having low ON impedance and very low OFF leakage current. These multiplexer circuits dissipate extremely low quiescent power over the full VDD – VSS and VDD – VEE supply voltage ranges, independent of the logic state of the control signals.

1. Single 8-Channel Multiplexer with Three Binary Control Inputs
2. The Three Binary Inputs Select Which of the 8-Channels is Connected to the Output
3. Low ON Resistance and High OFF Resistance
4. Operating Temperature to 85oC
5. Low Power TTL
