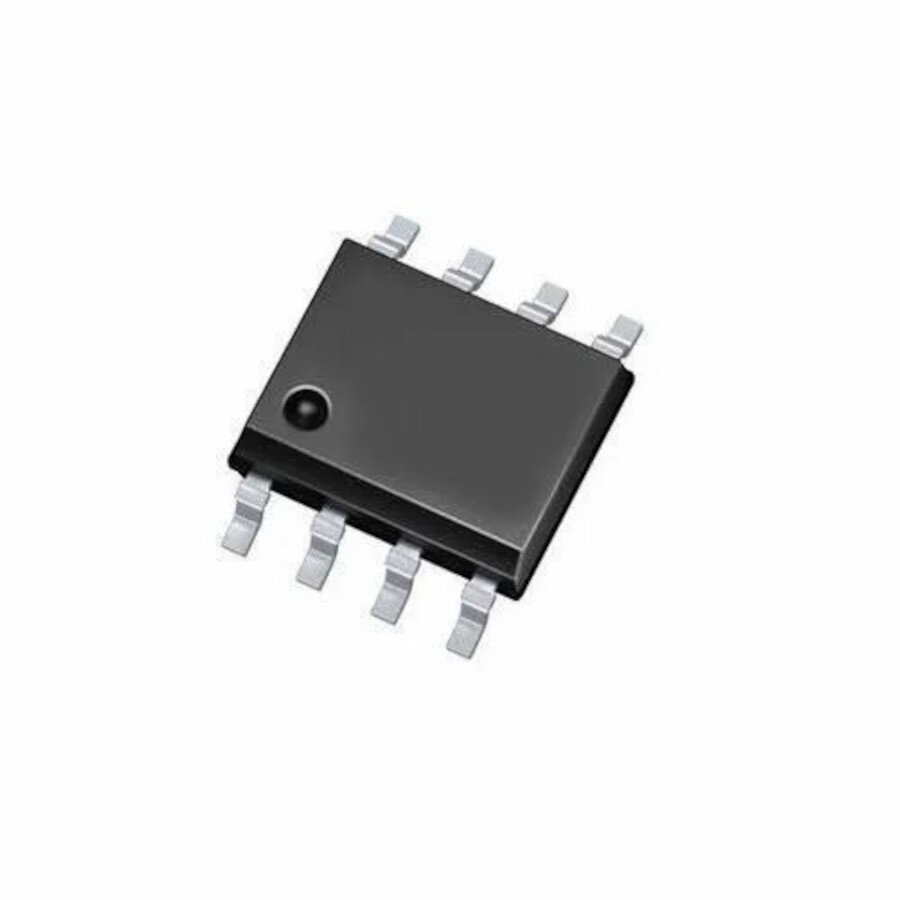

The LM741 is a general-purpose operational amplifier (op-amp) that is widely used in analog electronics. In the SOP-8 (Small Outline Package, 8 pins) surface-mount device (SMD) format, it provides the same functionality as its DIP (Dual In-line Package) counterpart but in a smaller form factor suitable for modern, compact circuit designs.

Key Features of LM741:

1. Wide Supply Voltage Range:

   • Single supply: 10V to 36V
   • Dual supply: ±5V to ±18V

2. General-Purpose Design:

   • Ideal for a wide range of applications like signal amplification, filters, and integrators.

3. Low Input Offset Voltage:

   • Typically 1 mV to 5 mV, providing accurate signal amplification.

4. Short-Circuit Protection:

   • Prevents damage to the op-amp in case of accidental overloads.

5. High Input Impedance:

   • Ensures minimal loading of the signal source.

6. Compensated for Unity Gain:

   • Stable operation in unity gain (voltage follower) configurations.

7. Temperature Range:

   • Typically operates from 0°C to 70°C for commercial-grade parts.

Pin Configuration (SOP-8):

1. Pin 1 (Offset Null): Used for offset voltage adjustment.
2. Pin 2 (Inverting Input): Receives the inverting input signal.
3. Pin 3 (Non-Inverting Input): Receives the non-inverting input signal.
4. Pin 4 (V− / GND): Negative power supply or ground.
5. Pin 5 (Offset Null): Used with Pin 1 for offset adjustment.
6. Pin 6 (Output): Output of the op-amp.
7. Pin 7 (V+ / Vcc): Positive power supply.
8. Pin 8 (NC or No Connection): Not connected internally; may be reserved for future use or left floating.

Applications:

• Signal conditioning
• Audio amplifiers
• Analog computing
• Integrators and differentiators
• Active filters
• Voltage followers (buffers)

Considerations:

While the LM741 is versatile, it is considered outdated for high-performance applications due to limitations like:

• Moderate slew rate (~0.5 V/μs)
• Limited bandwidth (~1 MHz)
• Higher noise compared to modern op-amps

For new designs requiring better performance, consider modern alternatives like the LM324, TL081, or OPA series op-amps.
