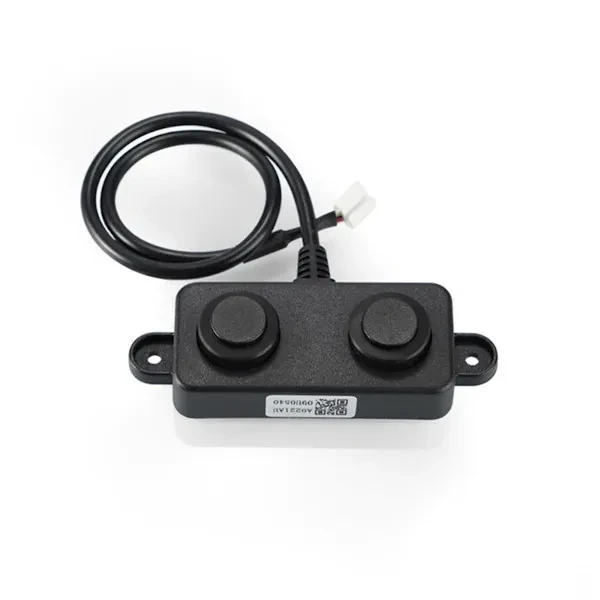

Waterproof Ultrasonic Sensor

The DYP-A02YY Waterproof Ultrasonic Ranging Sensor is a non-contact distance measurement module with stable performance and high-ranging accuracy featuring a much smaller blind zone, wider sensing angle, and a certain penetration power compared with other similar sensors.

It can detect the distance between the ultrasonic wave and the target. The sensor can be widely used in robot obstacle avoidance, parking management system, automatic control, and so on.

• * DYP-A02YY Waterproof Ultrasonic Ranging Sensor
• * Offers a non-contact distance measurement module
• * Detects the distance between the ultrasonic wave and the target
• * Provides stable performance and high-ranging accuracy
• * Features a much smaller blind zone, a wider sensing angle
• * Widely used in robot obstacle avoidance, parking management system

Specifications:

• Average Current: < 8 mA
• Operating Voltage: 3.3 ~ 5 V
• Response Time: 100 ms
• Detecting Range (Flat object): 3 - 450 cm
• Output: UART
• Operating Temperature: -15 ~ 60 °C
• Reference Angle: 60°
• Waterproof Grade: IP67
• Measurement accuracy: ± (1 + S*0.3 %)
