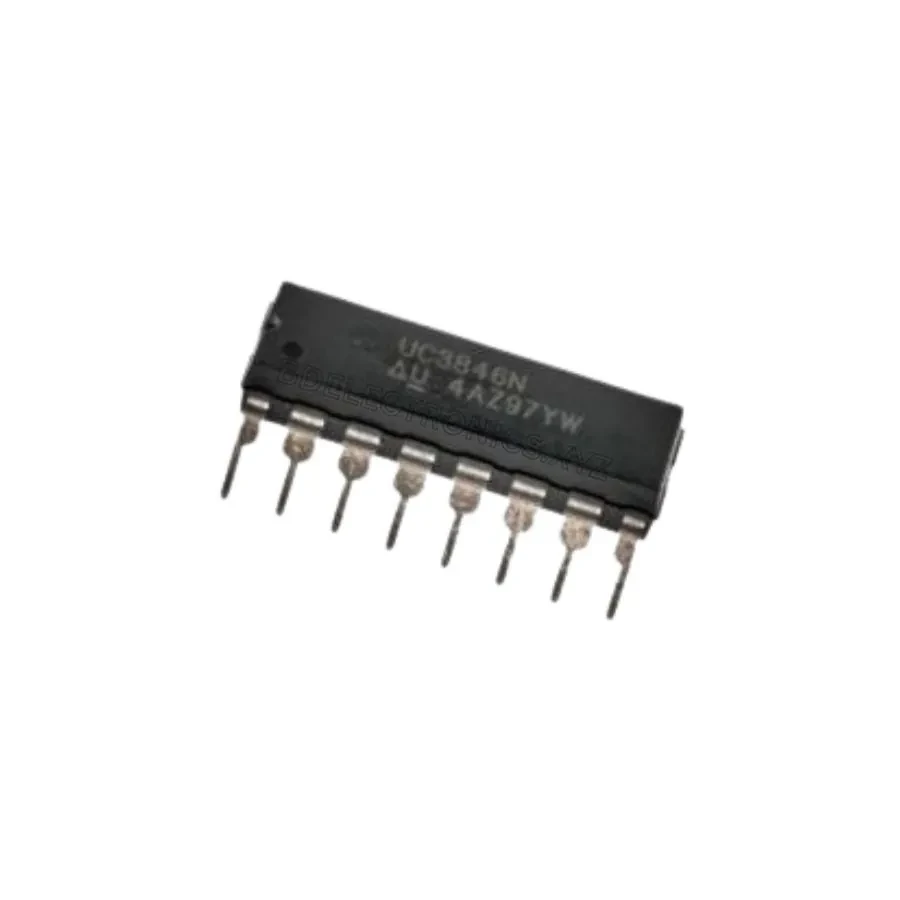

The UC3846N is a high-performance, fixed-frequency, current-mode PWM (Pulse Width Modulation) controller IC manufactured by Texas Instruments. It is designed for off-line and DC-DC converter applications, offering efficient power management with minimal external components. Below is a detailed overview of the UC3846N based on its specifications and features.

Key Specifications of UC3846N:

• Manufacturer: Texas Instruments
• Package: 16-pin PDIP (Plastic Dual Inline Package)
• Input Voltage Range: 6.95V to 40V
• Output Current: Up to 500mA
• Switching Frequency: Up to 500kHz
• Operating Temperature Range: 0°C to 70°C
• Control Technique: Current-mode PWM
• Maximum Duty Cycle: 50%
• RoHS Compliance: Yes (ROHS3 compliant)

Features:

1. Current-Mode Control: Provides precise regulation and improved stability for switching power supplies by controlling the output current while varying the output voltage.
2. Trimmed Oscillator: Ensures accurate duty cycle control for reliable operation.
3. High-Current Totem Pole Output: Capable of driving power MOSFETs efficiently with high peak current.
4. Low Startup Current: Less than 0.5mA, enhancing energy efficiency.
5. Under-Voltage Lockout (UVLO): Features UVLO with thresholds of approximately 6.95V (on) and 6.5V (off) for robust operation.
6. Error Amplifier: High-gain error amplifier for precise feedback control.
7. Current Sensing Comparator: Enables real-time current monitoring for safe operation.
8. Dual Outputs: Supports push-pull or dual-ended converter configurations, making it versatile for various topologies.
9. Soft-Start Capability: Reduces inrush current during startup, improving system reliability.
10. Shutdown Function: Allows disabling the controller to minimize power consumption in standby mode.

Applications:

• Switch-Mode Power Supplies (SMPS): Used in buck, boost, flyback, forward, and push-pull converter designs for efficient power conversion.
• DC-DC Converters: Supports step-up, step-down, and step-up/step-down conversions for various voltage requirements.
• Battery Chargers: Provides current-mode regulation for precise charging control.
• Power Inverters: Enables efficient DC-to-AC conversion with stable control.
• Industrial and Consumer Electronics: Ideal for power management in computing devices, industrial equipment, and LED lighting systems.
