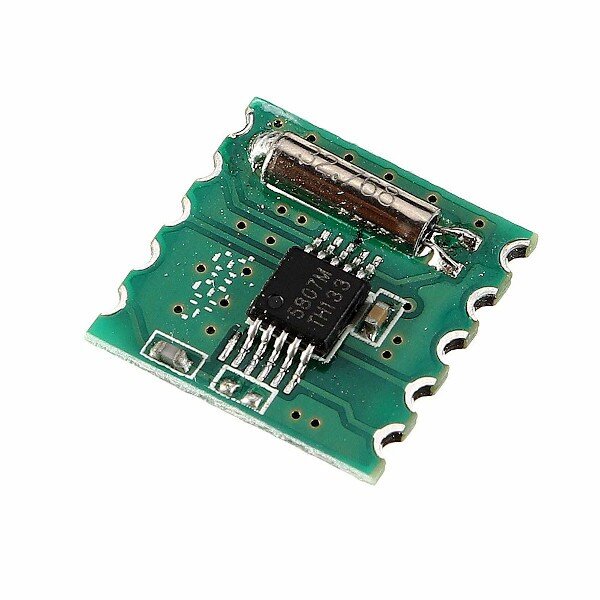

RDA5807M FM Stereo Radio Module RRD-102 V2.0 Wireless Pro For Arduino Tuner

RDA5807M FM Stereo Radio Module is (FM Stereo radio Module) high sensitivity, low power consumption, and ultra-small size of the FM stereo radio module. Using RDA Microelectronics of RDA5807M(or RDA5802NM), this circuit has fewer external components, and the noise factor is minimal. Small size, low power consumption, low cost, simple application, the use of a wide range of advantages. It is an easy-to-use and possessed a highly cost-effective single-chip FM stereo radio module. This product is known as RRD-102V2.0, RDA5807M FM Stereo Radio Module, RRD-102V2.0 Module, FM Stereo Radio Module, RDA5807M Wireless Module, RRD-102V2.0.

Features:

• CMOS single-chip fully-integrated FM tuner
• Low power consumption
• Support worldwide frequency band
• Support RDS/RBDS
• Digital low-IF tuner
• Image-reject down-converter
• High-performance A/D converter
• IF selectivity is performed internally
• Fully integrated digital frequency synthesizer
• Fully integrated on-chip RF and IF VCO.
• Only support 2-wire bus interface
• A fully integrated on-chip loop filter
• Autonomous search tuning
• Support 32.768KHz crystal oscillator

Features/Specs:

• Input Supply voltage: 2.7 ~ 3.3VDC
• Output Impedance: 32Ω
• Frequency band: 50 ~ 115 MHz
• Length: 11.2 mm
• Width: 11.2 mm
• Height: 2 mm
• Weight: 1 gm

Applications:

• Cellular handsets
• Portable Radios
• PDAs, Notebook
• Mobile phones, mobile phones, intercom systems, mobile radio devices stereo radio
