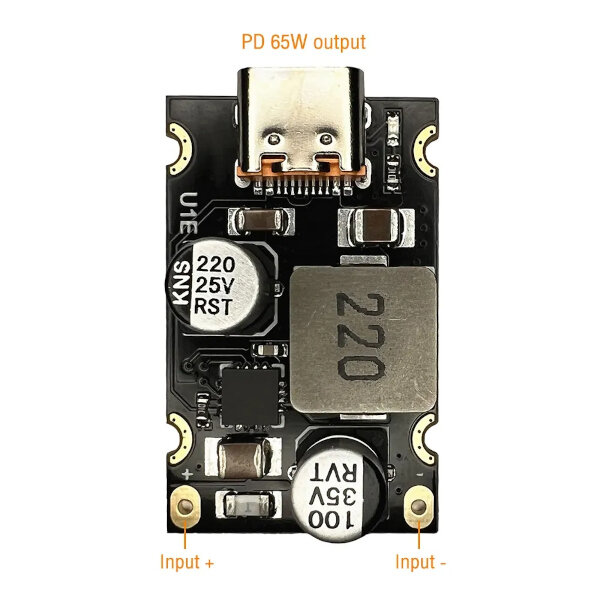

Product features:

Supports PD3.1 (PPS), QC3.0, SCP

With protection function, input over voltage and under voltage protection, input over current protection, output over current short circuit protection, and overall over-temperature protection

Maximum output 20V 3.25A

Input 8-30V (can only reduce voltage)

Product parameters:

Input voltage: DC 8-30V

Output voltage: Automatically adjust between 3.3V and 21V when connected to a compatible TYPE-C receiving device (input voltage should be higher than output voltage, and if 20V fast charging is triggered, input voltage should be higher than 20V)

Output power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)

Maximum output: 20V 3.25A

Conversion efficiency: 92%~97%

Output voltage ripple:<200mV

No-load current:<3mA

Input overvoltage and undervoltage protection

Input overcurrent protection

Output overcurrent short circuit protection

Overall over temperature protection

Supported charging protocols: PD3.1 (PPS), QC3.0, SCP

Product size:

Standard version: 32 × twenty × 10mm (excluding 1mm protruding from the C-port base)

With DC seat: 44 × twenty × 10mm (excluding 1mm protruding from the C-port base)

Supported charging protocols:

BC1.2, Apple Protocol

Qualcomm QC2.0 and QC3.0

Huawei Fast Charging Protocol FCP and SCP

Samsung Fast Charging Protocol AFC

MTK PE+1.1 and MTK PE+2.0

PD2.0/PD3.1 (PPS) Output Protocol

Product application: Various types of power supply transformation, fast charging output

Instructions for use:

When using a 20-24V power adapter as input, it is recommended to first power on the power supply before connecting to this module. Otherwise, there may be an error in module matching power due to slow power on, resulting in the inability to output 65W.

Product temperature rise and output ripple:

Test conditions: Input voltage 24V, ambient temperature 24 ℃, load of a laptop computer that supports PD65W (with approximately 50% battery capacity), and the computer undergoes pressure testing to ensure that the power terminal power reaches 65W.
