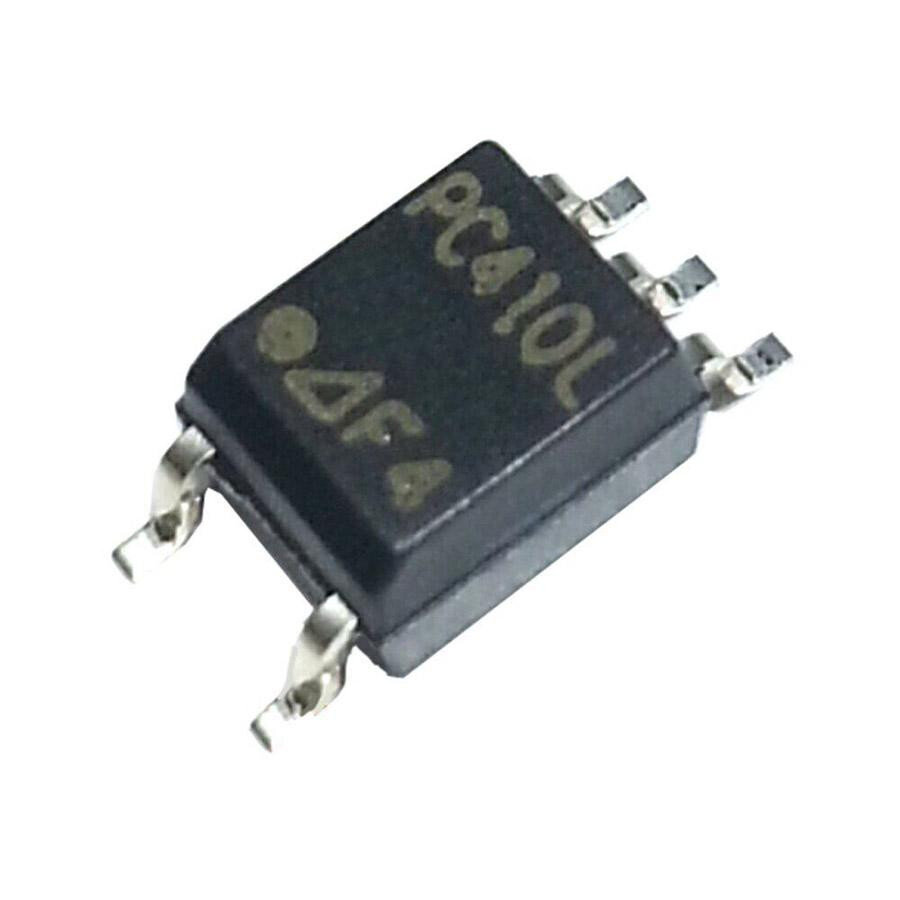

The PC410L is a high-speed optocoupler developed by Sharp Corporation. It features a light-emitting diode (LED) optically coupled to an integrated optical receiver, known as an OPIC (Optical IC), housed in a 5-pin mini-flat package. This design ensures a high level of electrical isolation between the input and output, with a rated isolation voltage of 3.75 kV (rms).

Key Specifications:

• High-Speed Response: The PC410L offers a typical data transfer rate of 10 Mb/s, with propagation delay times of approximately 48 ns (tPHL) and 50 ns (tPLH).

• High Noise Immunity: It boasts a minimum common mode rejection (CMR) of 10 kV/µs, enhancing its resistance to electrical noise.

• Compact Packaging: The device comes in a 5-pin mini-flat package, making it suitable for applications requiring high-density mounting.

Applications:

The PC410L is ideal for use in programmable controllers and inverters, where high-speed signal transmission and robust electrical isolation are essential.
