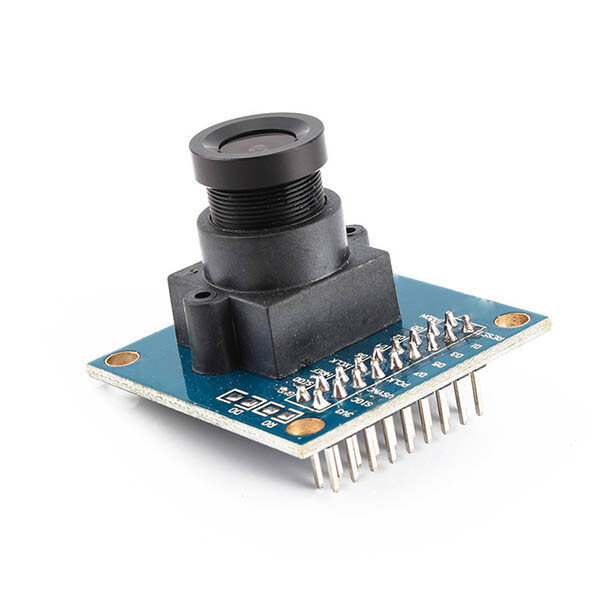

OV7670 Camera Module

The OV7670 Arduino Camera Module is a portable camera module that you can easily integrate with your Arduino and add image sensing capabilities to your project.

It has a low operating voltage and provides VGA camera and image processing from a single-chip.

You can fully control the image quality, data format and transmission mode.

Features

• Optical size 1/6 inch
• Resolution 640×480 VGA
• Onboard regulator, only single 3.3V supply needed
• Mounted with high quality F1.8 / 6mm lens
• High sensitivity for low-light operation
• VarioPixel® method for sub-sampling
• Automatic image control functions including: Automatic
• Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic
• Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
• Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
• ISP includes noise reduction and defect correction
• Supports LED and flash strobe mode
• Supports scaling
• Lens shading correction
• Flicker (50/60 Hz) auto detection
• Saturation level auto adjust (UV adjust)
• Edge enhancement level auto adjust
• De-noise level auto adjust
