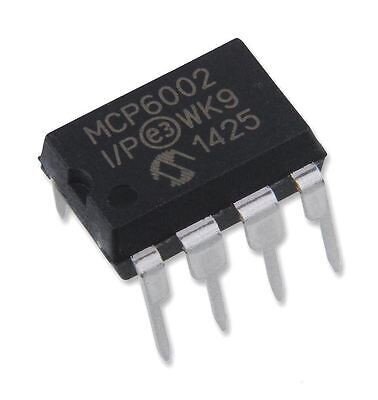

MCP6002-I/P Microchip, Op Amp, RRIO, 1MHz 1 kHz, 8-Pin PDIP

Specifications:

Attribute	Value
Amplifier Type	General Purpose
Mounting Type	Through Hole
Package Type	PDIP
Power Supply Type	Single
Number of Channels per Chip	2
Pin Count	8
Typical Gain Bandwidth Product	1MHz
Typical Slew Rate	0.6V/µs
Maximum Operating Frequency	1 kHz
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Output Current	±23 (Short Circuit) mA
Offset Voltage	±4.5mV
Maximum Input Voltage	6 V
Typical Voltage Gain	112 dB
Rail to Rail	Rail to Rail Input/Output
Input Voltage Range	1.8 → 6 V
Dimensions	9.27 x 6.35 x 3.3mm
Width	6.35mm
Minimum Input Voltage	1.8 V
Length	9.27mm
Height	3.3mm
Input Offset Current	1pA
Typical Input Voltage Noise Density	28nV/√Hz
