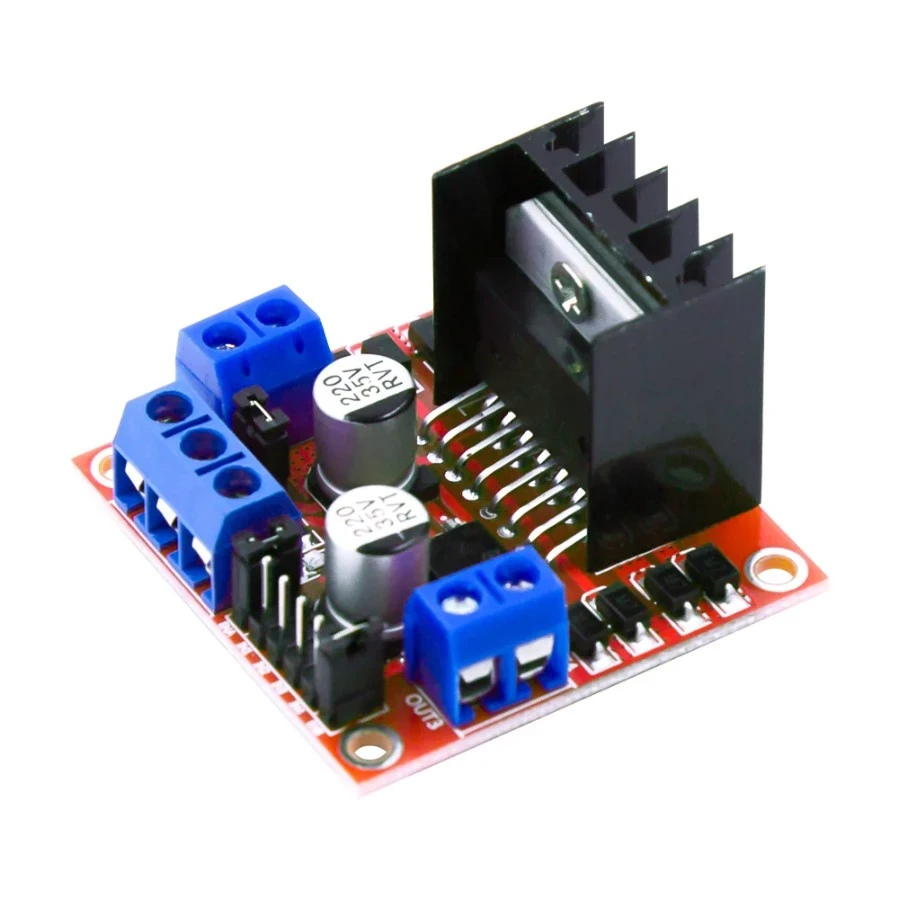

L298N Motor Driver Module Dual H Bridge DC Motor Controller Board
The L298N Motor Driver Module is one of the most popular motor control modules used in robotics, automation, Arduino, ESP32, Raspberry Pi, and engineering projects. It is based on the L298N Dual H-Bridge Motor Driver IC and allows users to control the direction and speed of two DC motors independently or one bipolar stepper motor.
This motor driver module is widely used by Bangladeshi students, robotics enthusiasts, engineering researchers, and IoT developers due to its simple interface and reliable performance. With support for PWM speed control and bidirectional motor driving, the L298N module is an ideal choice for robot cars, line follower robots, obstacle avoidance robots, automated systems, and DIY electronics projects.
Whether you are building a university project, science fair prototype, or industrial automation system, the L298N Motor Driver Module provides an easy and cost-effective solution for motor control applications.
Features:
✔ Dual H-Bridge motor driver design
✔ Control two DC motors independently
✔ Supports one bipolar stepper motor
✔ PWM speed control support
✔ Forward and reverse motor rotation
✔ Compatible with Arduino, ESP32, Raspberry Pi, STM32, PIC and AVR
✔ Onboard 5V regulator
✔ High current motor driving capability
✔ Easy screw terminal connections
✔ Ideal for robotics and automation projects
Specifications:
| Parameter | Value |
|---|---|
| Driver IC | L298N |
| Operating Voltage | 5V to 35V DC |
| Logic Voltage | 5V |
| Motor Current | Up to 2A per channel |
| Peak Current | 3A |
| Channels | Dual H-Bridge |
| PWM Support | Yes |
| Motor Support | DC Motor & Stepper Motor |
| Control Interface | Digital IO & PWM |
| Board Size | Approx. 43mm × 43mm × 27mm |
| Onboard Regulator | Yes |
| Heat Sink | Included |
Applications:
- Arduino Robot Car
- Line Follower Robot
- Obstacle Avoidance Robot
- Bluetooth Controlled Car
- WiFi Controlled Robot
- Smart Automation Projects
- Stepper Motor Control
- Engineering Research Projects
- STEM Education Projects
- DIY Electronics Projects
