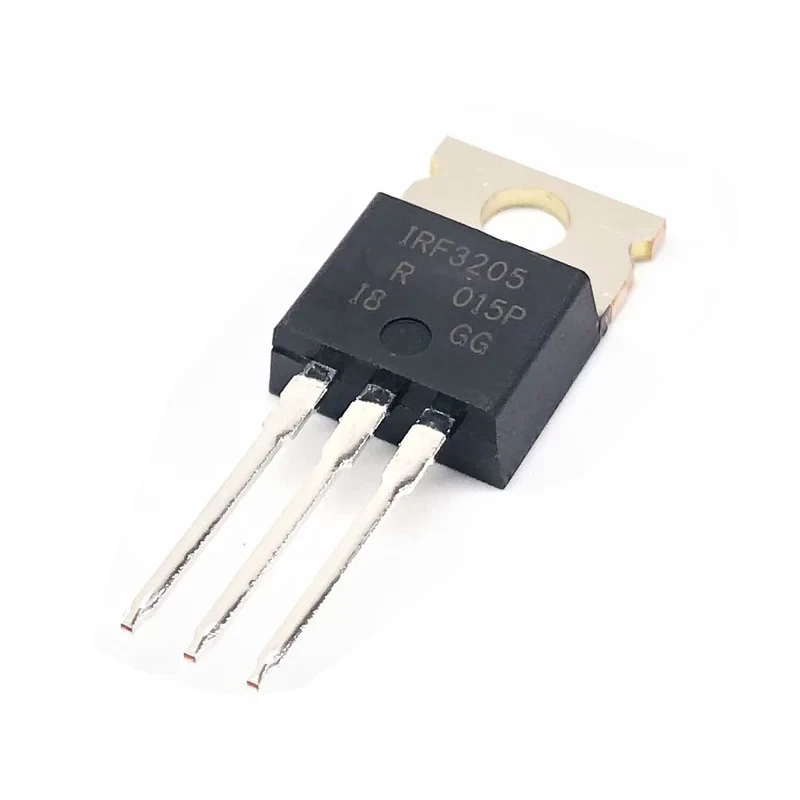

IRF3205 55V 110A N-Channel Power MOSFET TO-220

The IRF3205 55V 110A N-Channel Power MOSFET TO-220 is a high-current power switching transistor designed for applications that require efficient control of substantial electrical loads. It is widely used by electronics students, engineers, technicians, hobbyists, and DIY developers for power switching, DC motor control, inverter circuits, battery systems, DC-DC converters, and other high-current electronic projects.

The IRF3205 is an N-channel enhancement-mode MOSFET with a commonly specified 55V drain-source voltage rating and up to 110A drain current rating under specified conditions. Its low on-state resistance helps reduce conduction losses when the device is properly driven, making it useful in high-current switching applications. Actual current capability depends heavily on junction temperature, PCB or heatsink design, gate-drive conditions, switching frequency, and thermal management.

The MOSFET uses a convenient TO-220 through-hole package, making it easy to install on prototype PCBs, power boards, and heatsinks. The package is particularly useful for educational projects and repair work because it can be soldered manually and can be attached to a suitable heatsink when additional thermal dissipation is required.

The IRF3205 is commonly selected for 12V and 24V power electronics applications, including battery-powered equipment, electric motor controllers, LED power switching, automotive electronics, solar power projects, and inverter designs. It can also be used as a low-side power switch controlled by a suitable gate-drive circuit.

For Arduino, microcontroller, or other low-voltage logic projects, users should pay attention to the MOSFET's gate-drive requirements. A MOSFET should not automatically be considered fully enhanced simply because its gate can be driven with a digital signal. For low-voltage gate-drive applications, a logic-level MOSFET or an appropriate gate driver may be preferable.

The TO-220 package provides good mechanical flexibility for experimental and repair applications. When operating at high current, appropriate copper traces, wiring, connectors, heatsinking, and thermal protection are essential.

For Bangladeshi students and engineers, the IRF3205 55V 110A MOSFET is a practical component for learning and developing power electronics circuits such as DC motor controllers, inverter prototypes, battery protection circuits, switching power supplies, and high-current load switches.

Note: Electrical ratings such as 110A are maximum ratings under specific datasheet conditions and should not be treated as a guaranteed continuous operating current in every circuit.

Specifications:
