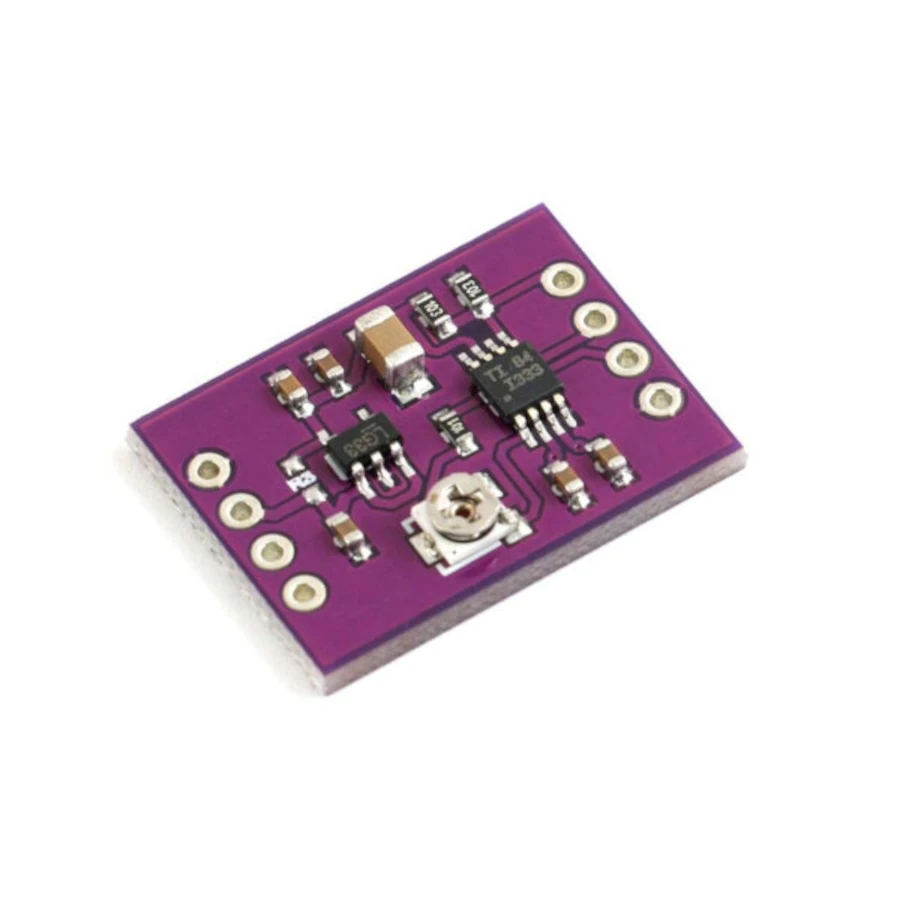

INA333 Signal Instrumentation Amplifier Module
The INA333 Signal Instrumentation Amplifier Module is a high-precision, low-power differential amplifier designed for amplifying small sensor signals while rejecting unwanted noise. Based on the Texas Instruments INA333 instrumentation amplifier IC, this module is widely used in biomedical devices, load cell amplifiers, strain gauge measurements, pressure sensing applications, industrial monitoring systems, and IoT projects.
The INA333 offers exceptional Common Mode Rejection Ratio (CMRR), ultra-low offset voltage, and low power consumption, making it perfect for battery-powered devices and sensitive analog signal conditioning circuits. Whether you're building a digital weighing scale, ECG monitor, EMG sensor, pressure measurement system, or precision data acquisition project, this amplifier module delivers stable and accurate results.
For Bangladeshi engineering students, robotics enthusiasts, researchers, and electronics professionals, the INA333 module is an excellent choice for improving sensor signal quality before feeding data into Arduino, ESP32, STM32, Raspberry Pi, or other microcontrollers.
Features:
- High-precision INA333 instrumentation amplifier
- Excellent common-mode noise rejection
- Ultra-low offset voltage
- Low power consumption
- Adjustable gain through external resistor
- Suitable for low-level sensor signals
- Compact module design
- Wide operating voltage range
- Compatible with Arduino, ESP32, STM32, Raspberry Pi
- Ideal for biomedical and industrial applications
Specifications:
| Parameter | Value |
|---|---|
| Amplifier IC | INA333 |
| Supply Voltage | 1.8V – 5.5V |
| Input Offset Voltage | Typically 25µV |
| Gain Range | Adjustable |
| Common Mode Rejection Ratio | Up to 100dB |
| Quiescent Current | 50µA Typical |
| Operating Temperature | -40°C to +125°C |
| Output Type | Analog |
| Board Type | Instrumentation Amplifier Module |
| Application | Signal Conditioning |
Applications:
- Load Cell Amplifier
- Digital Weighing Scale
- ECG Signal Amplification
- EMG Signal Processing
- Pressure Sensor Interface
- Strain Gauge Measurement
- Biomedical Instrumentation
- Industrial Monitoring
- Data Acquisition Systems
- Sensor Signal Conditioning
- Robotics Projects
- IoT Monitoring Systems
Why Choose INA333 Amplifier Module?
The INA333 is specifically designed for amplifying very small differential signals in noisy environments. Compared to ordinary operational amplifiers, it provides superior noise immunity and accuracy, making it ideal for precision sensor measurements.
Students and engineers can use this module to improve ADC accuracy, reduce interference, and obtain reliable sensor readings in advanced electronic projects.
