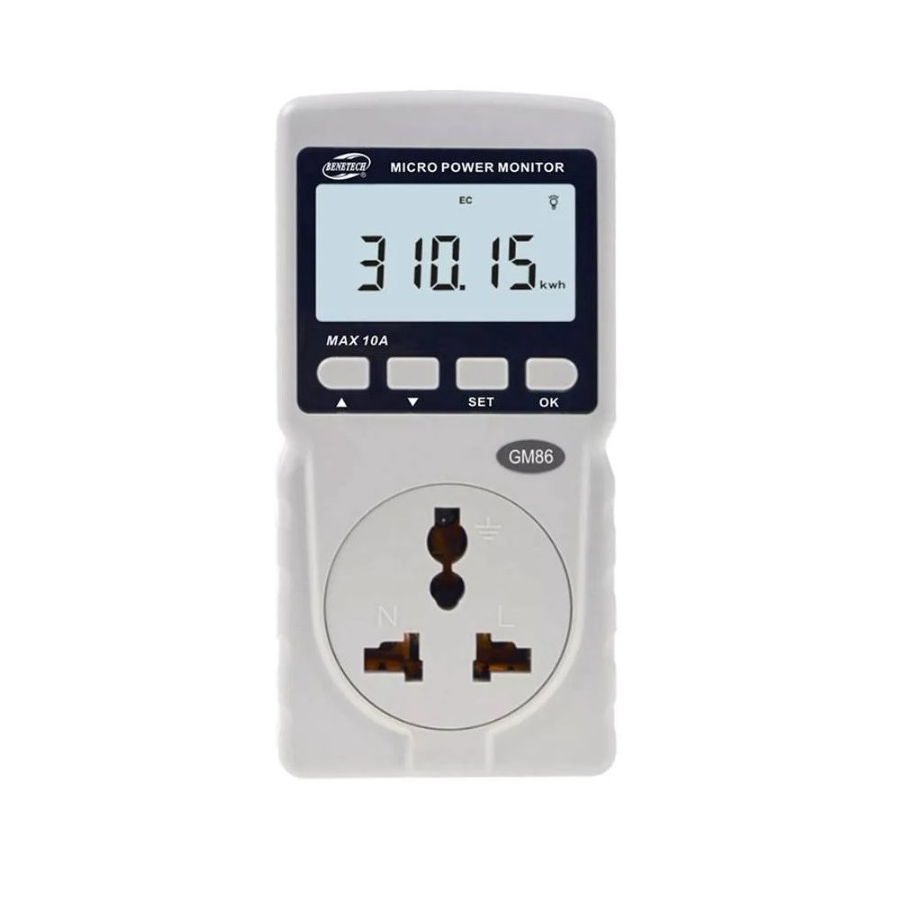

The product adopts highly integrated microcomputer chip and dedicated electricity metering chip in combination with highlyprecise current sensor and LCD display to realize overall monitor to electric equipment.

• Micro power monitor possesses the following features:

  1. Monitor the current active power value
  2. Monitor current voltage/current/frequency
  3. Record the total time of electricity consumption
  4. Record the total electricity consumption
  5. Calculate carbon dioxide emissions
  6. Power factor detection
  7. Load alarm threshold can be set




  Applicable power supply	220V 50Hz
  Working voltage range	180.0V~260.0V
  Maximum rated current	10A
  Maximum power	2200W
  Measurable range	0.2W~2200W
  Maximum accumulated electric quantity	99999KWh
  Maximum accumulated time	99999minutes
  Power factor	0.001-1.000
  Backlight function	ON/OFF can be set
  Precision	Level 1.0
  Constant	6400imp/kWh
  Power dissipation	<1W
  Working temperature	0~45℃
  Storage temperature	-20~60℃
  Product dimension	60.0*55.7*120mm
  Weight	129.6g
