The GBL08 is a single-phase bridge rectifier designed for converting alternating current (AC) to direct current (DC) in various electronic applications. It is particularly suitable for devices such as monitors, TVs, printers, switch-mode power supplies (SMPS), adapters, audio equipment, and home appliances.

Key Specifications:

• Maximum Repetitive Peak Reverse Voltage (VRRM): 800V
• Maximum RMS Voltage (VRMS): 560V
• Maximum DC Blocking Voltage (VDC): 800V
• Maximum Average Forward Rectified Current (IF(AV)): 4.0A
• Peak Forward Surge Current (IFSM): 135A
• Forward Voltage Drop (VF) at 4.0A: 1.1V
• Maximum DC Reverse Current at Rated DC Blocking Voltage (IR):
  • 5.0µA at 25°C
  • 500µA at 125°C
• Operating Junction Temperature Range (TJ): -55°C to +150°C

These specifications indicate that the GBL08 can efficiently handle AC to DC conversion in circuits requiring up to 4A of current, withstanding significant voltage levels up to 800V.

Physical Characteristics:

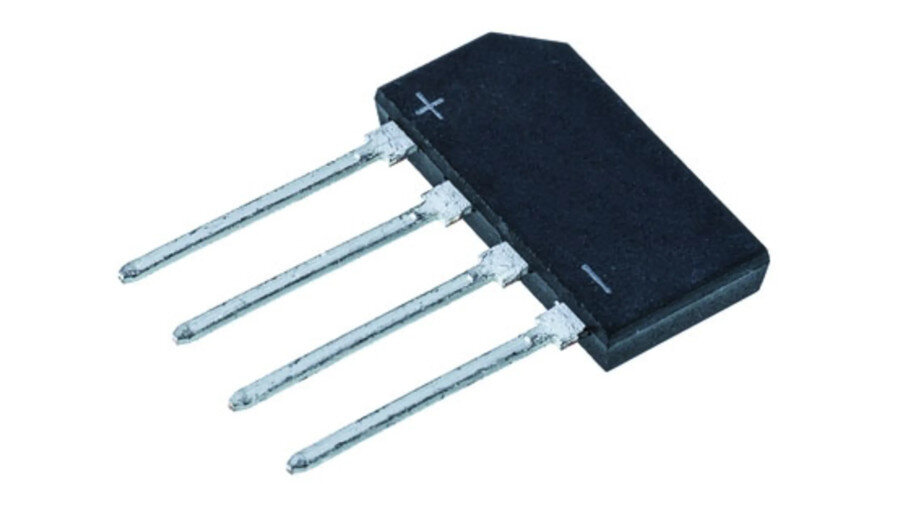

The GBL08 is encapsulated in a GBL package, which is designed for through-hole mounting on printed circuit boards (PCBs). This package offers high surge current capability and is ideal for applications where space and durability are considerations.

Applications:

Due to its robust voltage and current handling capabilities, the GBL08 is commonly used in:

• AC/DC Bridge Full-Wave Rectification: Converting AC input into DC output for electronic devices.
• Power Supplies: Used in switch-mode power supplies (SMPS) and adapters to provide DC power to various electronics.
• Consumer Electronics: Found in devices like monitors, TVs, printers, and audio equipment.
• Home Appliances: Utilized in various household appliances requiring DC power derived from AC sources.

For detailed technical information, including electrical characteristics and thermal properties, you can refer to the datasheet provided by Vishay Intertechnology.
