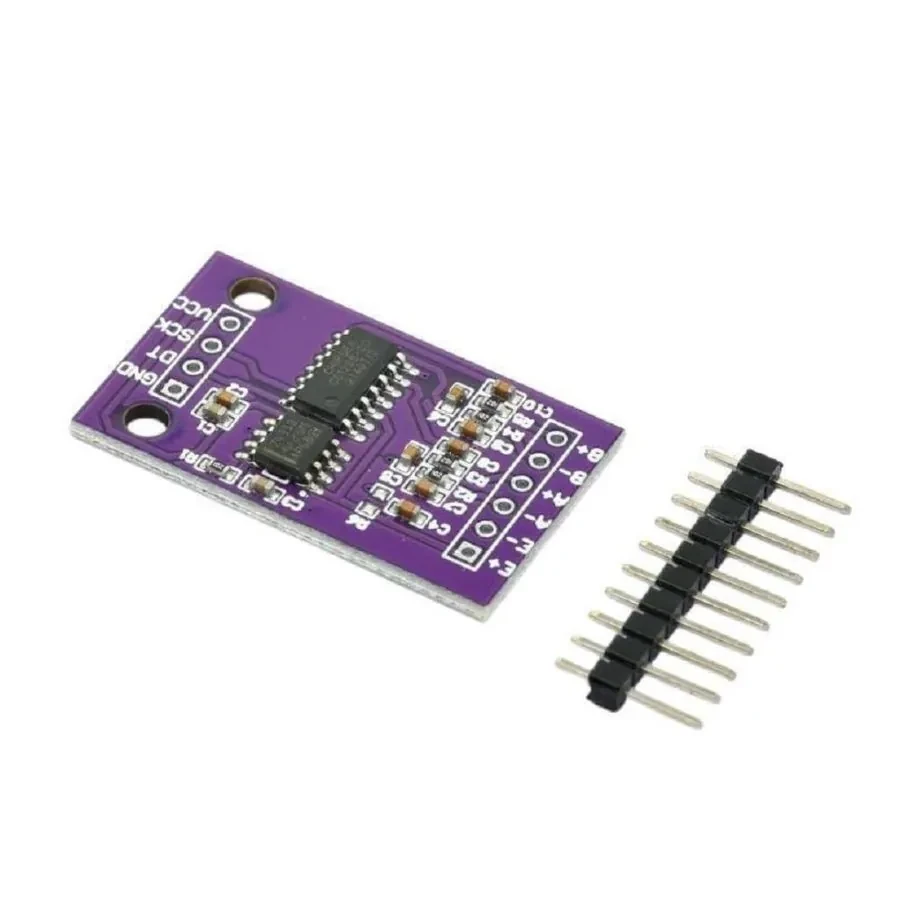

CS1237 24 Bit ADC Module – High-Precision Analog to Digital Converter.

he CS1237 24-Bit ADC Module is a high-precision, low-power analog-to-digital converter (ADC) designed for applications requiring accurate measurement of small differential signals. Manufactured by Chipsea Technologies, this module is particularly suitable for use with load cells, strain gauges, and other sensor systems.

Key Features

• 24-Bit Resolution: Offers high-resolution digital output with no missing codes, ensuring precise measurements.

• Programmable Gain Amplifier (PGA): Selectable gains of 1, 2, 64, and 128, allowing for flexible signal amplification.

• Selectable Output Data Rates: Output rates of 10 Hz, 40 Hz, 640 Hz, and 1.28 kHz, accommodating various application needs.

• Integrated Temperature Sensor: Built-in temperature sensor for temperature compensation in measurements.

• Stable Reference Voltage: Onboard TL431 voltage regulator provides a stable 2.5V reference voltage.

• Low Power Consumption: Ideal for battery-powered and portable applications.

• 2-Wire SPI Interface: Enables communication with microcontrollers at speeds up to 1.1 MHz.

Applications

The CS1237 module is suitable for various applications, including:

• Industrial Process Control: Precise measurements in industrial environments.

• Electronic Balances: High accuracy for weight measurement systems.

• Liquid/Gas Analysis: Useful in analytical instruments requiring precise digital conversion.

• Hematology Equipment: Applicable in medical devices for blood analysis.

• Intelligent Converters: Integration into smart conversion devices.

• Portable Measurement Devices: Ideal for portable and handheld measuring instruments.

Shop the CS1237 24 Bit ADC Module today at BD Electronics XYZ and enjoy fast delivery, reliable quality, and the best price in Bangladesh.
