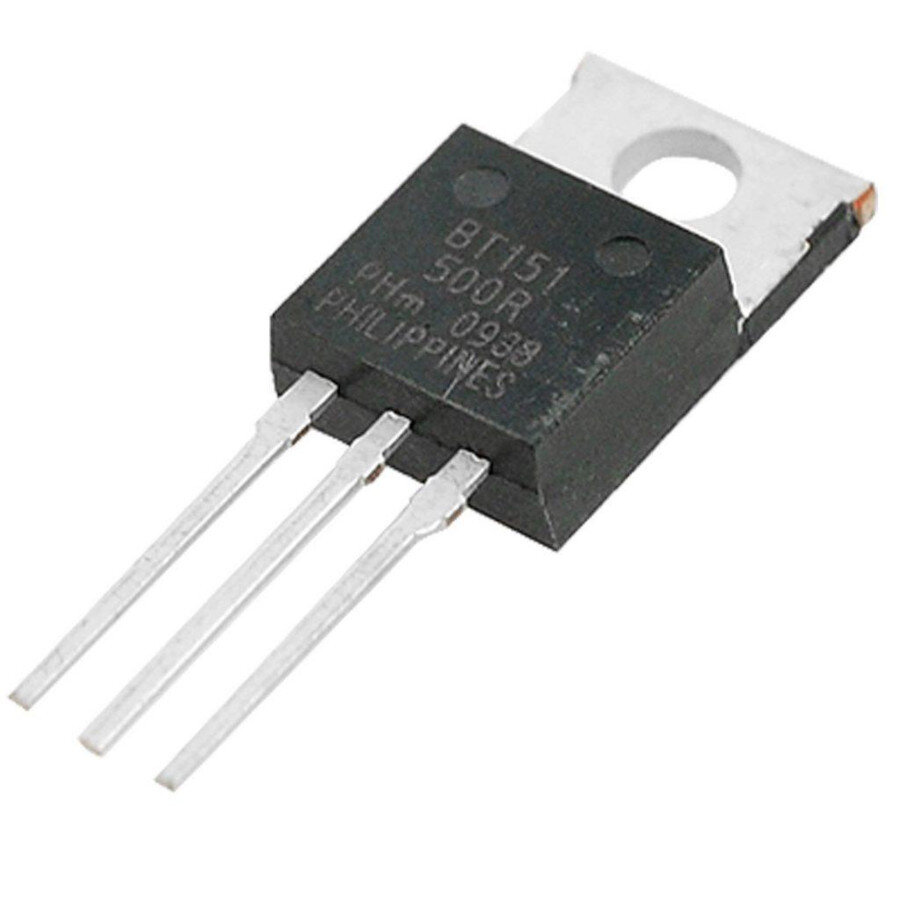

The BT151-500R is a type of Silicon Controlled Rectifier (SCR), designed for use in applications requiring high-voltage and high-current control. Here are some key details about the BT151-500R:

General Specifications:

• Type: SCR (Silicon Controlled Rectifier)
• Current Rating: 12 A (Average On-State Current)
• Voltage Rating: 500 V (Peak Repetitive Off-State Voltage)
• Gate Triggering Current: Typically low to moderate (usually between 20 to 50 mA)
• Package Type: Typically available in a TO-220 or similar form factor
• Operating Temperature Range: Usually from -40°C to +125°C
• Peak Non-Repetitive Surge Current: Around 150 A (for short durations)
• Critical Rate of Rise of Off-State Voltage: Often specified as 1000 V/μs or similar

Typical Applications:

• Motor control
• Phase control in AC power systems
• Light dimming
• Over-voltage protection circuits
• Solid-state relays

Functionality:

An SCR like the BT151-500R is a semiconductor device used to control power in high-current and high-voltage applications. It remains in a conducting state once triggered (by a gate signal) and will only turn off when the current through it drops below a certain threshold (typically zero-crossing of the AC signal in alternating current applications).

Let me know if you need more details, such as its datasheet or more specific
