BNO055 Intelligent 9axis attitude sensor module

(0 reviews)
Brand
China

Inhouse product


Price
৳1,650.00 ৳1,700.00 /1 -3%
Quantity
(11 available)
Total Price
Share

Reviews & Ratings

0.00 out of 5.0
(0 reviews)
There have been no reviews for this product yet.

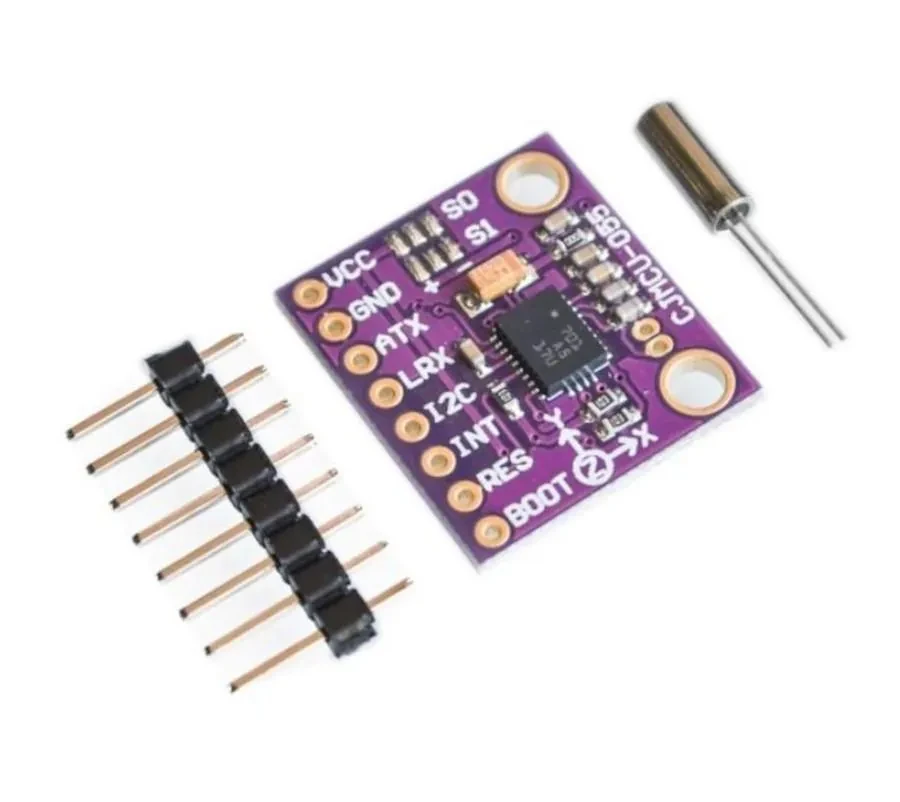

MCU-055 MCU+9DOF BNO055 Intelligent 9axis attitude sensor module.


Specifications:
Sensor Type:
  • 9 Degrees of Freedom (DOF) IMU (Inertial Measurement Unit)
  • Combines Accelerometer, Gyroscope, and Magnetometer sensors
Sensor Fusion:
  • Integrated 32-bit microcontroller running Bosch's proprietary fusion algorithm for precise orientation and motion sensing
Individual Sensors:
  • Accelerometer: Measures linear acceleration in 3 axes (X, Y, Z)
  • Measurement range: ±2g, ±4g, ±8g, ±16g
  • Gyroscope: Measures angular velocity in 3 axes
  • Measurement range: ±125°/s, ±250°/s, ±500°/s, ±1000°/s, ±2000°/s
  • Magnetometer: Measures magnetic field in 3 axes for heading information
  • Measurement range: ±1300μT
Operating Voltage:
  • 3.6V (Typical)
  • Range: 2.4V to 3.6V
Power Consumption:
  • Ultra-low power modes
  • Normal mode: 12mA (typical)
  • Low-power mode: 4.0mA (accelerometer only)
  • Sleep mode: 0.5mA
Communication Interfaces:
  • I²C Interface (up to 400kHz)
  • UART Interface (115200 baud rate)
  • SPI (optional, up to 10 MHz)
Output Data:
  • Fusion Outputs: Euler Angles (Pitch, Roll, Yaw), Quaternions
  • Raw Sensor Data: Accelerometer, Gyroscope, and Magnetometer readings
Orientation Sensing:
  • 3D acceleration, 3D rate of turn, 3D magnetic field strength
  • Absolute orientation in form of Euler angles or quaternions
Sensor Calibration:
  • Auto-calibration functionality for all 3 sensors (accelerometer, gyroscope, and magnetometer)
Operating Temperature:
  • Range: -40°C to +85°C
Package Type:
  • 28-pin LGA (Land Grid Array)
  • Dimensions: 3.8mm x 5.2mm x 1.1mm
Applications:
  • Robotics, Drones, Motion Tracking, Gaming, Augmented Reality, Wearables, and Virtual Reality systems
Additional Features:
  • Self-test capability
  • Programmable interrupts for specific motion detection
  • Fast I²C/UART data rates for real-time applications
