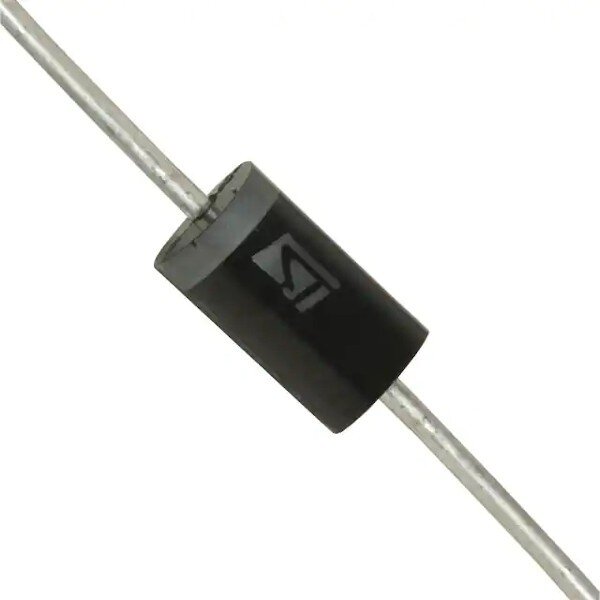

1.5KE100CA 1500W Bi-Directional TVS Diode
(0
reviews)
Inhouse product
Price
৳18.00
/1
Share
Top Selling Products
-
৳320.00
Reviews & Ratings
0.00
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
Specifications
| Attribute | Value |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Maximum Clamping Voltage | 178V |
| Minimum Breakdown Voltage | 95V |
| Mounting Type | Through Hole |
| Package Type | DO-201 |
| Maximum Reverse Stand-off Voltage | 85.5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 1500W |
| Maximum Peak Pulse Current | 56A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Dimensions | 9.5 x 5.3 x 5.3mm |
| Width | 5.3mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Height | 5.3mm |
| Length | 9.5mm |
